Zehntner ZRM 6013+ RL-Qd

Professional retroreflectometer for day and night visibility.

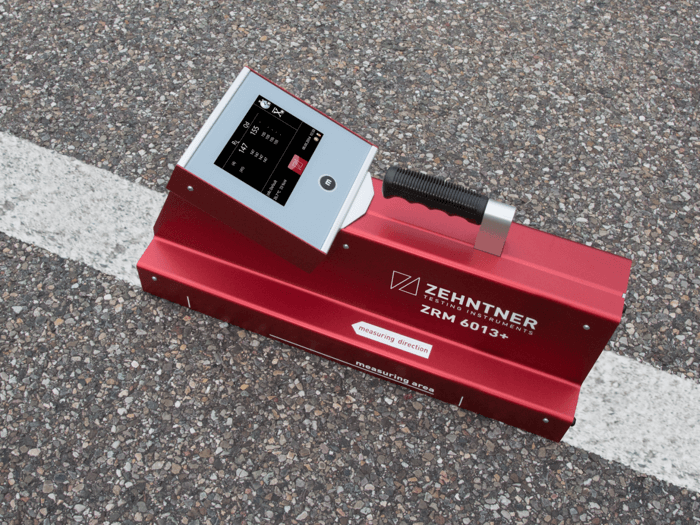

The Zehntner ZRM 6013+ RL-Qd is a high-performance, portable retroreflectometer designed for accurate measurement of night visibility (RL) and day visibility (Qd) of road and airport markings. Part of the Screening Eagle Technologies – Road Safety portfolio and Swiss Made, it delivers ultrafast, reliable results in both field and laboratory environments.

Featuring a bright 5.7″ transflective color touchscreen, robust construction, and intelligent optics, the ZRM 6013+ enables quality control and compliance testing on all types of road markings in dry or wet conditions, at any time of day or night. Its large internal memory and compatibility with MappingTools software ensure efficient data management, visualization, and reporting for modern road asset workflows.

Features

Ultrafast measurement of RL and Qd in ~2 seconds

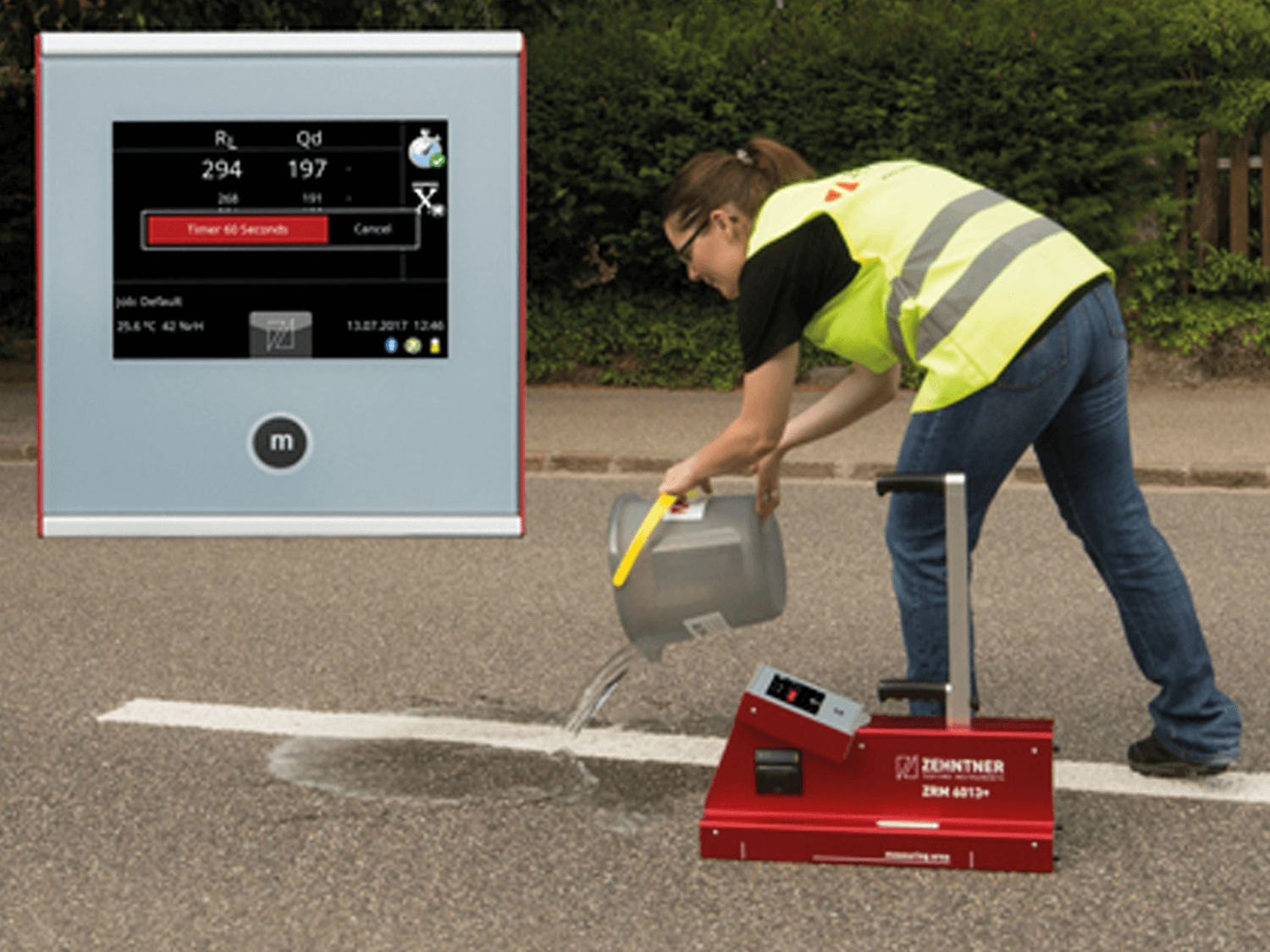

Measures night visibility (RL dry & RL wet) and day visibility (Qd)
High-resolution 5.7″ color TFT touchscreen with LED backlight
Excellent readability under strong sunlight and low-light conditions
Portable, rugged design for road, airport, and laboratory use
Internal sensors for ambient temperature (°C/°F) and relative humidity (rH %)
1 GB internal flash memory for extensive measurement storage
USB connectivity for fast data transfer
Compatible with MappingTools software for XLS and KMZ export
Swiss Made quality with traceable calibration

Applications

Road marking night visibility (RL) assessment
Road marking day visibility (Qd) assessment
Airport runway and taxiway marking evaluation
Road safety audits and regulatory compliance testing
Quality control of marking materials
Field and laboratory performance benchmarking

Technical Data

Parameter	Specification
Measurement Modes	RL dry (night visibility), RL wet (night visibility), Qd (day visibility), Ambient temperature (°C/°F), Relative humidity (rH %)
Measuring Area	52 × 218 mm (2.05″ × 8.58″)
Measuring Range	RL: 0 – 4 000 mcd·m⁻²·lx⁻¹Qd: 0 – 400 mcd·m⁻²·lx⁻¹
Measuring Accuracy	Repeatability ± 2 %
Observation Angle	EN 1436 / ASTM E2302: 2.29°ASTM E1710: 1.05°
Illumination Angle	RL (EN 1436): 1.24°RL (ASTM E1710): 88.76°Qd: diffuse illumination
Display	5.7″ color TFT touchscreen, LED backlight, VGA resolution
Memory / Storage	1 GB internal flash memory
Connectivity	USB interface
Weight	Approx. 6.8 kg
Operating Temperature	–10 °C to +50 °C (non-condensing)
Standards Compliance	EN 1436, ASTM E1710, ASTM E2177, ASTM E2302, CIE 54.2
