Coating Thickness Standards

Coating Thickness Standards

Certified Coated Metal Plates & Certified Polystyrene Blocks

Certified coated metal plates and polystyrene blocks are ideal for verifying the accuracy and operation of coating thickness gages and are an important component in fulfilling both ISO and in-house quality control requirements.

Many organizations require verification of gage accuracy at the test site each time a coating thickness gage is put into service and at frequent intervals during use. Ideal for this purpose, DeFelsko certified coating thickness standards have measured values traceable to a National Metrology Institution.

Zero Plates available for both Certified Coated Metal Plates and Certified Polystyrene Blocks.

Features

Used to verify the accuracy and operation of any Type 1 (mechanical) and Type 2 (electronic) magnetic, eddy-current or ultrasonic coating thickness gage
Ideal for use in the calibration lab, in the field or on the factory floor
Standards with steel or aluminum substrates consist of 4 plates mounted in a protective binder
Polystyrene thickness standards consist of 4 blocks supplied in a rugged acrylic storage box
Individually serialized for traceability to NIST or PTB – includes a Certificate of Calibration
Certified and labeled in both Metric and Imperial units

Applications

Technical Data

Certified Coated Metal Plates

Order Code

Ideal for

Approximate Thickness

Coating/

Substrate

Accuracy

Plate 1

Plate 2

Plate 3

Plate 4

S1

PosiTector 6000 F, FS, FRS, FN, FNS, FNRS, FXS*, FNDS

PosiTest F & FM

0

75 μm

3 mils

250 μm

10 mils

1500 μm

60 mils

Epoxy on Steel

(Ferrous)

± 0.43 μm

± 0.017 mil

S2

PosiTector 6000 F0S, F45S, F90S, F90ES

PosiTest DFT Ferrous & Combo

0

75 μm

3 mils

250 μm

10 mils

1000 μm

40 mils

S3

PosiTest G & GM

PosiPen

0

15 μm

0.6 mils

40 μm

1.6 mils

100 μm

4 mils

S4

PosiTector 6000 FXS*

0

75 μm

3 mils

1000 μm

40 mils

1900 μm

75 mils

A1

PosiTector 6000 N, NS, NRS, FN, FNS, FNRS, FNDS

0

75 μm

3 mils

250 μm

10 mils

1500 μm

60 mils

Epoxy on Aluminum

(Non-Ferrous)

± 0.43 μm

± 0.017 mil

A2

PosiTector 6000 NAS, N0S, N45S, N90S

PosiTest DFT Combo

0

75 μm

3 mils

250 μm

10 mils

500 μm

20 mils

A3

PosiTector 200, 200B

75 μm

3 mils

125 μm

5 mils

250 μm

10 mils

500 μm

20 mils

Certified Polystyrene Blocks

Order Code

Ideal for

Approximate Thickness

Accuracy

Plate 1

Plate 2

Plate 3

Plate 4

P1

PosiTector 6000 FT, FTS, NTS, FNTS, FTRS

PosiTector 200 D

375 μm

15 mils

2 mm

80 mils

4.5 mm

185 mils

6.5 mm

250 mils

± (2.5 μm + 0.05% of thickness)

± (0.1 mil + 0.05% of thickness)

P2

PosiTector 6000 FJS

2.5 mm

100 mils

6.5 mm

250 mils

13 mm

500 mils

19 mm

750 mils

P3

375 μm

15 mils

1.5 mm

60 mils

2.5 mm

100 mils

4.5 mm

185 mils

P4

1.5 mm

60 mils

2.5 mm

100 mils

4.5 mm

185 mils

6.5 mm

250 mils

P5

PosiTector 6000 FKS, NKS

1.5 mm

60 mils

2.5 mm

100 mils

6.5 mm

250 mils

12 mm

480 mils

P6

PosiTector 200 C

375 μm

15 mils

1.5 mm

60 mils

2.5 mm

100 mils

3 mm

125 mils

P7

PosiTector 6000 FHXS

1.5 mm

60 mils

4.5 mm

185 mils

6.5 mm

250 mils

9.5 mm

375 mils

P8

PosiTector 6000 FNGS, FLS

13 mm

500 mils

13 mm

500 mils

13 mm

500 mils

19 mm

750 mils

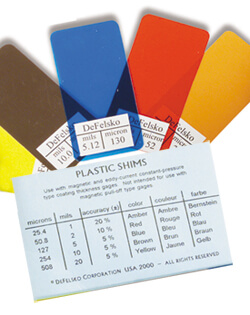

Certified Plastic Shims

Order Code	Approximate Thickness	Color	Accuracy
CS1	25 μm (1 mil)	Orange	±2 μm (±0.08 mil)
CS2	50 μm (2 mil)	Red
CS3	75 μm (3 mil)	Green
CS5	125 μm (5 mil)	Blue
CS10	250 μm (10 mil)	Brown
CS20	500 μm (20 mil)	Yellow
CS40	1000 μm (40 mil)	White
CS60	1500 μm (60 mil)	Black
CSS	Complete set of 8

Non-Certified Plastic Shims

Approximate Thickness	Color	Accuracy
25 μm (1 mil)	Orange	± 20%
50 μm (2 mil)	Red	± 10%
125 μm (5 mil)	Blue	± 5%
250 μm (10 mil)	Brown	± 5%
500 μm (20 mil)	Yellow	± 5%

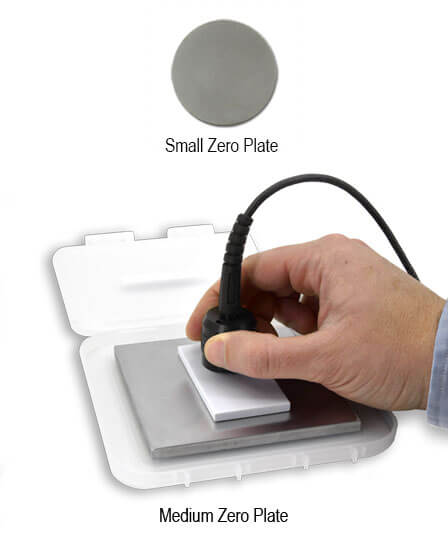

Zero Plates

Order Code	Ideal for	Type	Plate size
STDZSTL	PosiTector 6000 F, FS, FRS, FN, FNS, FNRS, FXS, FNDS, F microprobes PosiTest DFT Ferrous Combo	Steel	Small Disk Diameter: 38 mm (1.5″)
STDZALM	PosiTector 6000 N, NS, NAS, NRS, FN, FNS, FNRS, FNDS, N microprobes PosiTest DFT Combo	Aluminum	Small Disk Diameter: 38 mm (1.5″)
STDZSTLM	PosiTector 6000 FT, FTS, FTRS, FNTS, FKS, FHXS probes	Steel	Medium Square 100 mm x 100 mm x 6 mm (4″ x 4″ x 0.25″)
STDZALMM	PosiTector 6000 FNTS, NKS probes	Aluminum	Medium Square 100 mm x 100 mm x 6 mm (4″ x 4″ x 0.25″)
STDZSTLL	PosiTector 6000 FLS, FJS, FNGS probes	Steel	Large Square 180 mm x 180 mm x 6 mm (7″ x 7″ x 0.25″)
